Wirelessly Connect Via Either or WiFi-CDMA-GSM-PSTN or EtherNet using UNIX |
| |
 |
| |

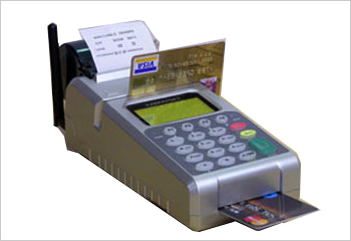

Mayan W-POS is launched in close cooperation with Visa & Master International, India's leading pay-solution brand and the largest payment system worldwide. Mayan W-POS Terminal is the first indigenously developed point-of-sale (POS) terminal in India. Its built on ARM Processor based technology with Thermal printer and RTC powered by in built battery backup.
As completion between merchants intensifies, so does the evolution of payment options to attract new customers and retain existing ones. The changing w-payment landscape has created a need for a versatile, multi-purpose device that can support the full spectrum of applications needed by the competitive retail environment.
With a wide range of communication options available, the can be deployed in a wide range of applications that involves real-time, online transactions processing with a remote server. This helps in improving the operational efficiency of an organization in a fiercely competitive market. |
| |
| Application Areas |
- Banking
- Financial Institutions
- Loyalty and gifts cards
- Medical & Healthcare
- Retail & FMCG
- Inventory Management
- Transportation and Tourism
- Telecom
- Gaming / Lottery
- Restaurants
- Electronic Voucher Distribution
|
| |
| Features |
- Battery status monitor
- 19-button ergonomically designed keypad
- Application software compatibility
- Low cost, compact and comprehensive
- Optional built-in Smart Card reader
- Upto 3 SAM modules
- Large back-lit graphical display
- Self Diagnostic features
- *Serial Port
|
| |
| Product Images |
| |
 |
 |
 |
| Keypad |
Smart Card Reader |
LCD Display |
|
| |
| Specifications |
| Processor and Memory |
32 bit ARM core CPU @ 70Mhz
8 MB flash memory
16 MB SDRAM memory |
| User Interface |
Large backlit graphical display (128 x 64)
19 keys keypad including function keys (F1-F4)
Menu driven system |
| Magnetic Stripe Card Reader |
Bi directional swipe
Track 1 and Track 2 |
| Optional features |
EMV Level 1 & 2 Smart Card reader
3 ISO 7816 contact SAMs
Internal Pinpad
External Pinpad |
| Printer |
Thermal graphic printer
10 lines/second
Automatic paper feeder
57 mm (2.25 in.) wide paper
8 dots/mm resolution |
| Paper Roll |
Thermal (20 Mtrs) |
| Interfaces |
RS-232 (RJ45 Connector for console/Serial port)
USB Slave
Power Connector (DIN) |
| Software |
Linux Operating System
Easy to use SDK* and debugging tools |
| Power Adaptor |
9V DC, 2.2A External Power Supply Adaptor
working on 100 - 220V A.C/50Hz |
| Battery |
7.2V/ 2,000mAH Lion type |
| Dimensions |
L 245mm X W 96 mm X H 85 mm |
| Weight |
750 gms |
|
| |
