Wireless Radio RFID Chip Based Access and Attendance Control System


Cashless Payment / Access Control / Time Attendance System (PM-3760M2)
The PM-3760M2 is Mifare contactless smart IC card read / write system which integrate the supreme features of secured read / write data to Mifare card and the powerful functions possessed by the PP-3760 access & time recorder, so that the system can program the personal data to the individual ID card, and load the system parameters to each access recorder, then thru the very thoughtful algorism, the system can be configured to support the on-line / off-line applications in either time attendance, or perfect access controller and the prepaid value systems or their combinations



Intelligent Proximity Card Time Attendance & Access Controller (PS-3760)
PS-3760 has the same powerful functions as PP-6750 has, and plus five more inputs for connecting with PIR sensor / fire devices.. etc.
Support intelligent stand-alone & PC on/off-line operation, and TCP/IP available with external converter.
With 256KB nonvolatile memory for 6,000 cards and 8,000 events ( expandable with 4 MB flash memory for 15,000 card & 32,000 events) for 6-10 digits I.D. with 4 digits PIN, personal time zones, staff numbers and name.
With auto operation mode by time zones, 79 user definable duty codes, 168 time alarm, 96 holiday schedules, anti-pass back auto reset function, ARM/DISARM function, anti-duress code function, card valid time restriction function, prevent repeating reading within 1~9 minutes function, and error message logging...etc.



Standalone / Networking Multi-doors Access Controller ( PC-1037 )
Serve as a centralized station and event buffers to management the access of
subordinate 16 pieces 707 series access readers (PG-707, PP-5707, PUA-377 etc)
Networking 707 readers system to controller the access by data access map (ID,
PIN, time zone) for real time mode
Network communication through RS-232C/RS-422 interface by PCP-832-xx
multi-channel controller

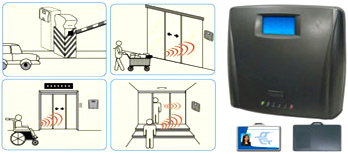

6Meters / 3Meters Long Range Active Card RFID Reader ( PFH-9210-620 / 320)
Weather resistant and water proof
315MHz/433.9MHz/915MHz + 125KHz type RFID
Interface RS485, RS232C, Wiegand
Reading range: Max. 6 meters(PFH-9210-620) or Max. 3 meters(PFH-9210-320)
Dimensions:270(L)x270(W)x39(H) mm



60cm RFID Long Range Proximity Card Reader (PFH-9210-60)
Weather resistant and water proof, Built-in Beeper sound
125KHz type reading passive contactless card or keyfobs require no batteries
Interface RS485, RS232C, Wiegand
Reading range: Max. 60cm
Dimensions:270(L)x270(W)x39(H) mm



Intelligent On/Off-line Proximity Card Access Controller & Time Attendance
( PP-6750 )
LCD display. Waterproof keypad. Dimensions:137(L)x85(W)x25(H) mm
Proximity Reader / Access Controller / Time & Attendance 3 in 1 design
Operation modes-RF only, RF + keypad, RF / keypad, free access only
For 6,000~15,000 card holders and 8,000~32,000 events buffers
Timed Anti-Pass Back. (With 24/36/48 hours anti-pass back reset function)
8 scheduled time zones and 79 user definable duty codes
144 time alarm for bell schedules and 72 programmable holidays



Mini Model Proximity Card / Mifare Smart Card Reader (PP-110 / PM-110)
Compact size, Weather resistant
Interface RS485, RS232C, Wiegand
Passive contactless card or keyfobs require no batteries
Reading range :5 to 15 cm
26 bit standard Wiegand output
Dimensions:94(L)x43(W)x15(H) mm






Detailed Description

  • Graceful and robust ABS case with screw hole and tamper switch output to prevent vandalism
  • Well automatic tuning to prevent frequency shifting
  • Well identification to resist rain and obstruct
  • Antenna and reader are not to have to separate installation
  • Reader SN/Card SN/Reading range:
    PFH-9210-620/PFH-620/maximum 6 meters.
    PFH-9210-320/PFH-320/maximum 3 meters.
    PFH-9210-660/PFH-660 (built-in EM chip)/maximum 6 meters (Handsfree) and 40 cm(EMID).
  • Operating frequency:125KHz+433.9MHz or 125KHz+315MHz or 125KHz+915MHz
  • Directivity: Omni-directional
  • Modulation: Transmit coded - ASK, receiving - super heterodyne
  • Output format: RS-485, RS-232C, Wiegand, Pegasus, ABA Track II magnetic stripe format
  • Indications:2 color LED (red and green)
  • Operating temperature: -20 to 60 degrees Celsius
  • Humidity:10 to 90 percent RH (non condensing)
  • Operating voltage/current:15V DC/300mA
  • Reset: Watch-dog and Power-on reset
  • Dimension:270 x 270 x 39mm
  • Weight:2.00kg, +/- 5%
